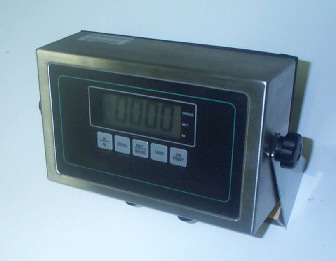

TI-1000 Stainless Steel Readout

TI-1000 Stainless Steel Readout

with Cattle Motion Program

The TI-1000 is a general purpose low cost digital indicator with a NEMA 4x stainless steel enclosure for use in washdown environments. It comes with an oversize (1") LCD screen for easy readout of up to 5,000 display divisions, and supplies enough current for up to 4-350W load cells. The primary and secondary displayed units may be altered to fit the required application. All setup parameters may be entered via the front panel keys, including calibration.

The TI-1000 uses full duplex RS-232 serial format for communication with many types of attached support equipment. The unit can transmit data on demand, or continuously in a popular data protocol to match a wide variety of printers, remote displays, or personal computers. Wiring diagrams to connect extra equipment will be found on page 2 of this manual.

The setup parameters are altered through the Setup menu. A graphical road map of the Setup menu is found on page 3 of the manual. The Configuration section of the manual, found on page 2, explains how to enter the Setup menu. In this mode, the five front panel keys become directional navigators to maneuver and save settings.

Price:

Contact for pricing: bill@massload.com

ANALOG SPECIFICATIONS

Full Scale Input Signal	30V, including dead load
Input Impedance	30MW , typical
Internal Resolution	Approximately 100,000 counts
Display Resolution	5,000 dd
Measurement Rate	10 Meas/sec
System Linearity	Within 0.02% if FS
Calibration Method	Software Calibration, with long term storage in EERPROM
Excitation Voltage	+5VDC, 4 x 350W load cells
RFI Protection	Signal and excitation lines protected by LC Low Pass Filter

DIGITAL SPECIFICATION

Microcomputer	Intel 80C32
	Program Memory:	32K x 8, external to m C
	SCRAM:	8K x 8, external to m C
	EEPROM:	64 x 16, external to m C
Digital Filtering	Software selectable

SERIAL COMMUNICATION

Printer Port

Full duplex at 1200, 2400, 4800, or 9600 Baud. Data bits and parity selectable

OPERATOR INTERFACE

Display	1" (25.4mm) 7-segment, Liquid Crystal, 4½ Digit
Additional Symbols	Net, Gross, kg, neg weight
Keyboard	5-key flat membrane panel

POWER

AC Adapter	12 VDC @ 800mA
Power Consumption	110mA, with 4 x 350W load Cells

Operation Manual (11.8mb, .pfd format)
